FlashPro-ARM (XS)
HomeStore

FlashPro-ARM (XS)

FlashPro-ARM (XS)

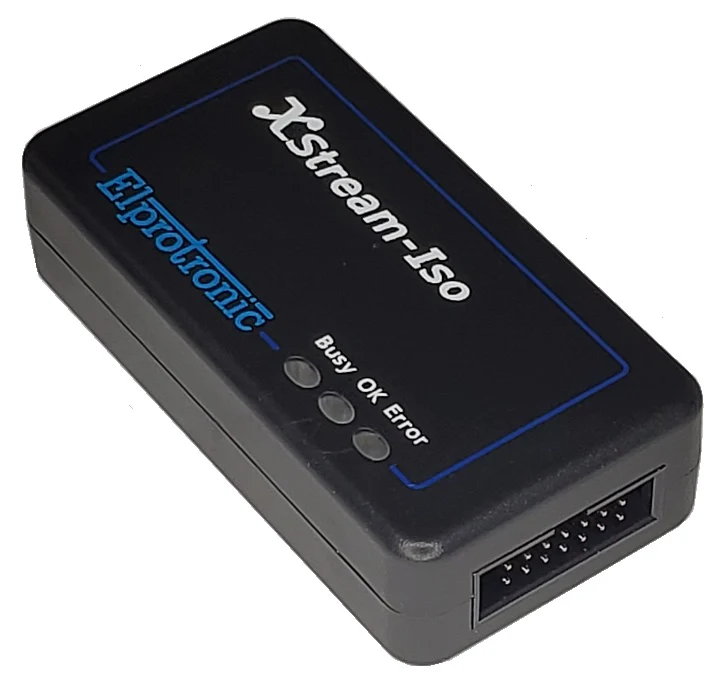

  • Embedded Flash programmer. XStream-Iso hardware adapter runs with FlashPro-ARM software.
  • Supports JTAG, cJTAG, and SWD communication.
  • Programmable communication clock up to 20 MHz, effective throughput up to 1 MBytes/s.
  • Power supply from adapter available, up to 200 mA.
  • Current measurement from 20 uA to 200 mA.
  • Customizable Vcc from 1.65 to 4.0V.
  • Galvanic Isolation between computer and target (XStream-Iso up to 2.5kV)
  • CMSIS-DAP 2.0 ARM Debugger included (IAR EWARM, Keil uVision, etc. debugging support). Debugger features.
  • Benchmarks

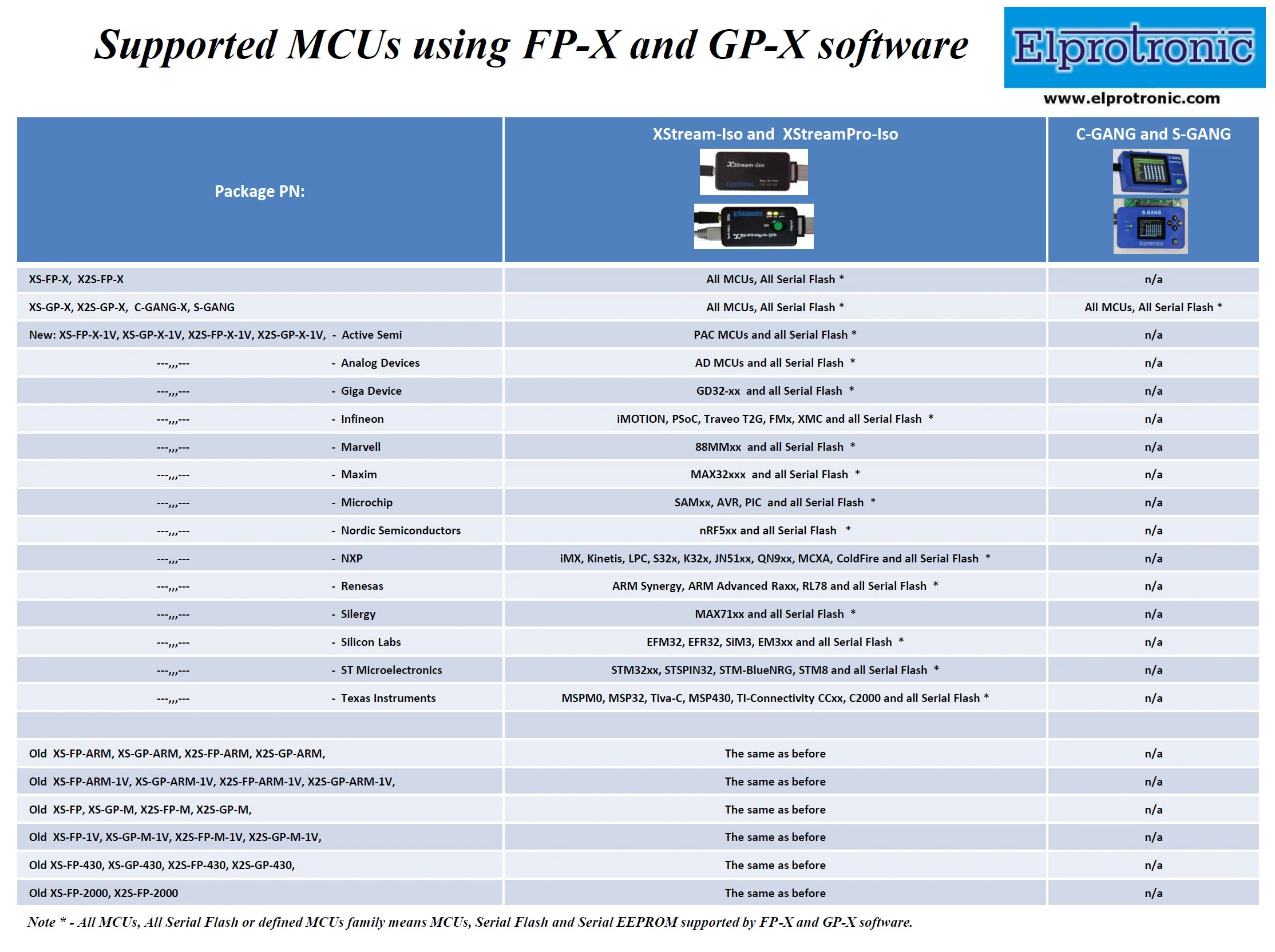

Programs MCUs from ALL of these Vendors:
  • Texas Instruments (MSP M0/432, CC SimpleLink, TIVA-C),
  • ST Microelectronics (STM32 Lx, Fx, Hx, Gx, Ux, WB, WL, BlueNRG),
  • Silicon Labs (EFM32, EFR32, EM zigbee, SIM3),
  • Silergy (MAX),
  • Renesas (Synergy),
  • NXP/Freescale (Kinetis EA, E, K, L, M, V, LPC, and i.MX RT),
  • Nordic Semiconductor (nRF),
  • Microchip/Atmel (SAM),
  • Maxim Integrated (MAX),
  • Marvell (88M),
  • Cypress (iMotion, FM0+, FM3, FM4, PSoC 4, PSoC 5LP, PSoC 6),
  • Analog Devices (Precision),
  • Active-Semi (PAC).
Software Package:
  • Easy to use GUI runs on Windows(TM) XP, 7, 8, 10, and 11.
  • Shared library and Command-Line support (Debian Linux).
  • DLL and Command-Line support (Windows).
  • C++, C#, Python code examples provided.
  • Download installer for: Windows, Debian (x86-64), and Debian (ARM)
  • Debugging User Guide
Package contains:
  • XStream-Iso 1.1 programming adapter,
  • USB cable,

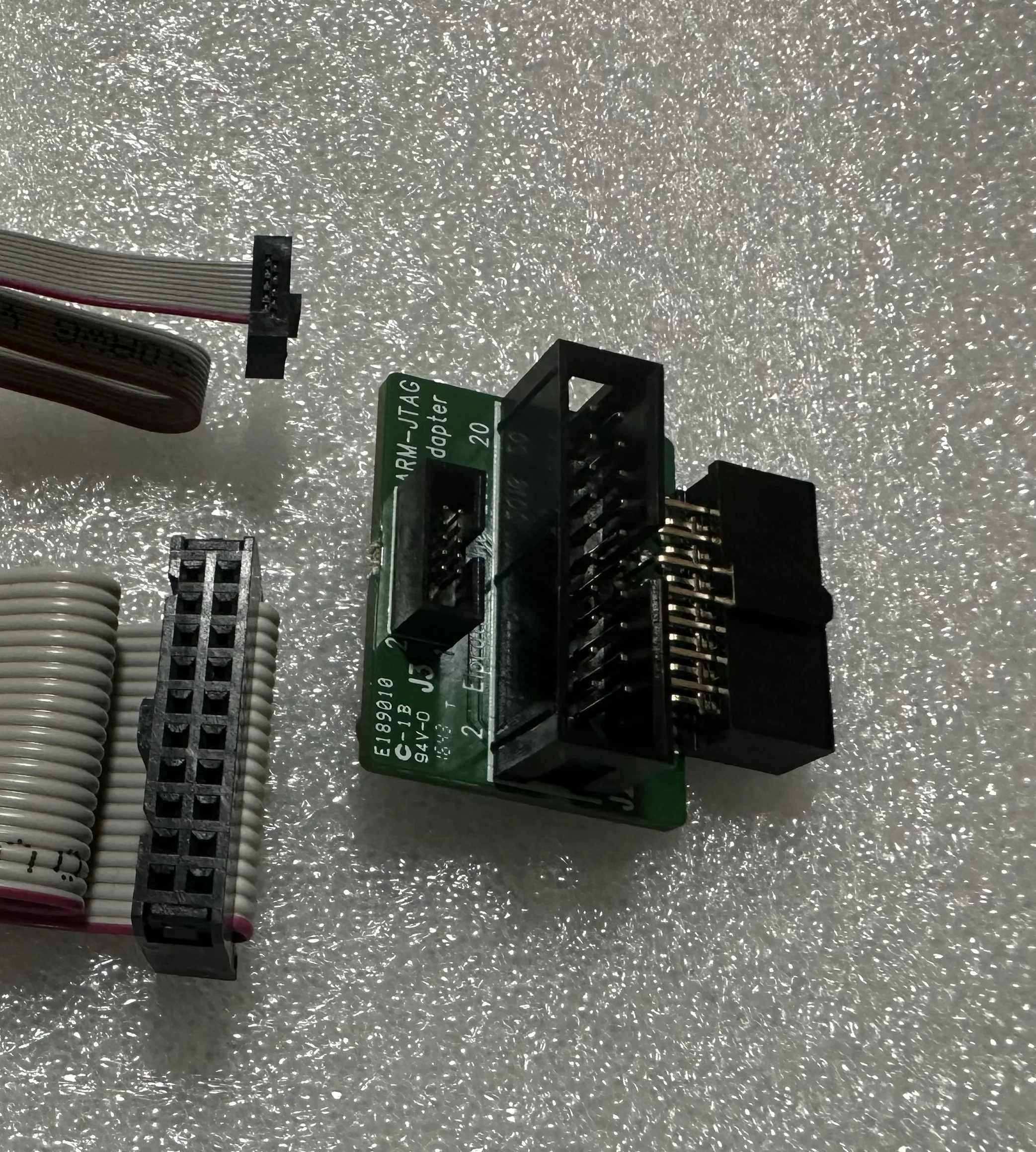

  • FPA to ARM 14-pin to 20-pin adapter and ribbon cable,
  • One Year Warranty,
  • Unlimited time software usage license, no limit on number of programmed devices,
  • No code size limitations,
  • One Year free software updates,
  • Software Update License Renewal is optional (only needed for updates to run newer software version after one year).  Already used software version will run indefinitely, with no need for license renewal.
Warranty and Refund & Return Policy:
$170.70

Original: $569.00

-70%
FlashPro-ARM (XS)—

$569.00

$170.70

More Images

FlashPro-ARM (XS) - Image 2

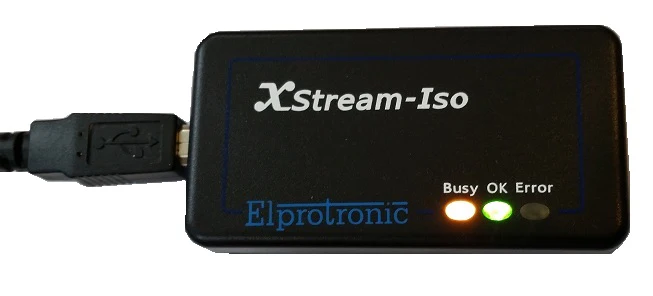

FlashPro-ARM (XS) - Image 3
